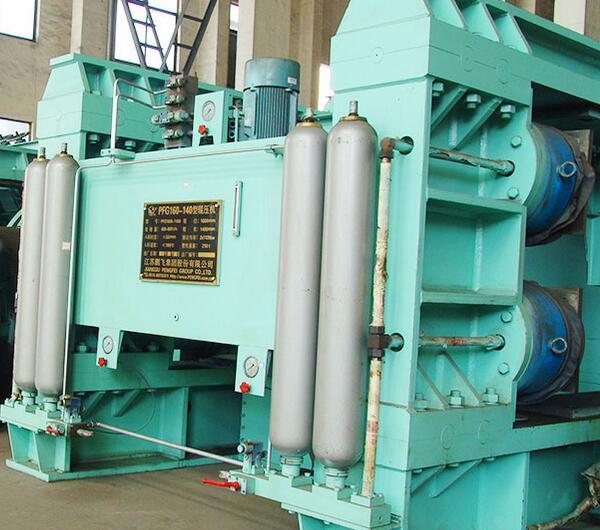

Technical Parameters of PFG160-140 Rolling Machine:
1. Name: PFG160-140 rolling machine
2. Application: clinker crushing
3. Amount: 1 set
4. Material: clinker
5. Total moisture content: ≤1-1.5%
6. Max.feeding size: Dmax≤60mm
7. Average feeding size: D≤25mm
8. Discharging size: 22%~30% is 0.08mm.
9. Productivity: 600-720t/h
10. Working mode: continuous
11. Power supply mode: voltage: 10KV; motor model: YR5603-4
12. Layout mode: indoor motor power: 2x1120KW
13. Diameter of roller: 1600mm
14. Width of roller: 1400mm
15. Linear velocity: 1.47m/s
16. Max. crushing capacity: 70KN/cm2
17. V type powder separator: V-XY6817
=========================================================================================================
As world-known and high-quality cement machinery general contractor, Jiangsu Pengfei Group Co., Ltd can provide you with various machines, such as cement production line, cement grinding plant, active lime production line, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, drying equipment, cooling equipment, compound fertilizer equipment, Conveying Lifting Packing Equipment, Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Iran, Japan, South Korea, Bengal, Pakistan, Turkey, Burma, Vietnam, South Africa, Columbia, Bolivia, etc. If you need equipment such as rotary kiln, ball mill, vertical mill, rolling machine , please don't hesitate to contact us.
