Technical Parameters of PFG150-100 Rolling Machine:
1. Name: PFG150-100 rolling machine
2. Application: clinker crushing
3. Amount: 1 set
4. Material: clinker
5. Total moisture content: ≤1~1.5%
6. Max.feeding size: 80mm
7. Discharging size: more than 60% of products are less than 2mm.
8. Production capacity: 483~543t/h
9. Working mode: continuous
10. Power supply mode: voltage 6KV
11. Layout mode: indoor
12. Required power: 2*710 kW

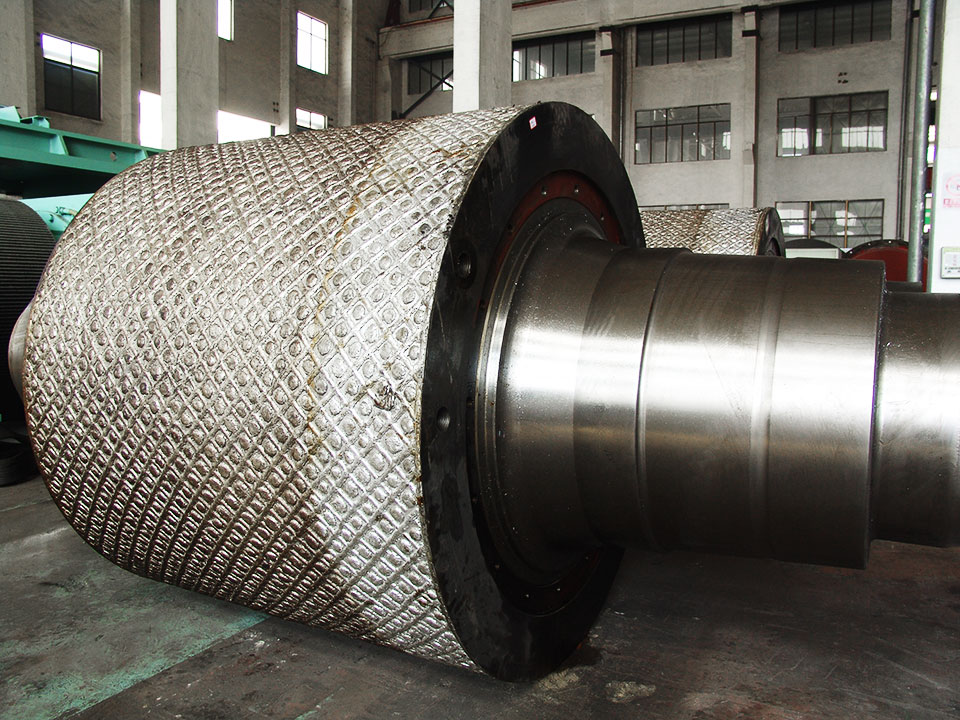

13. Diameter of roller: 1500mm
14. Width of roller: 1000mm
15. Rotating speed of roller: 19.7 r/min

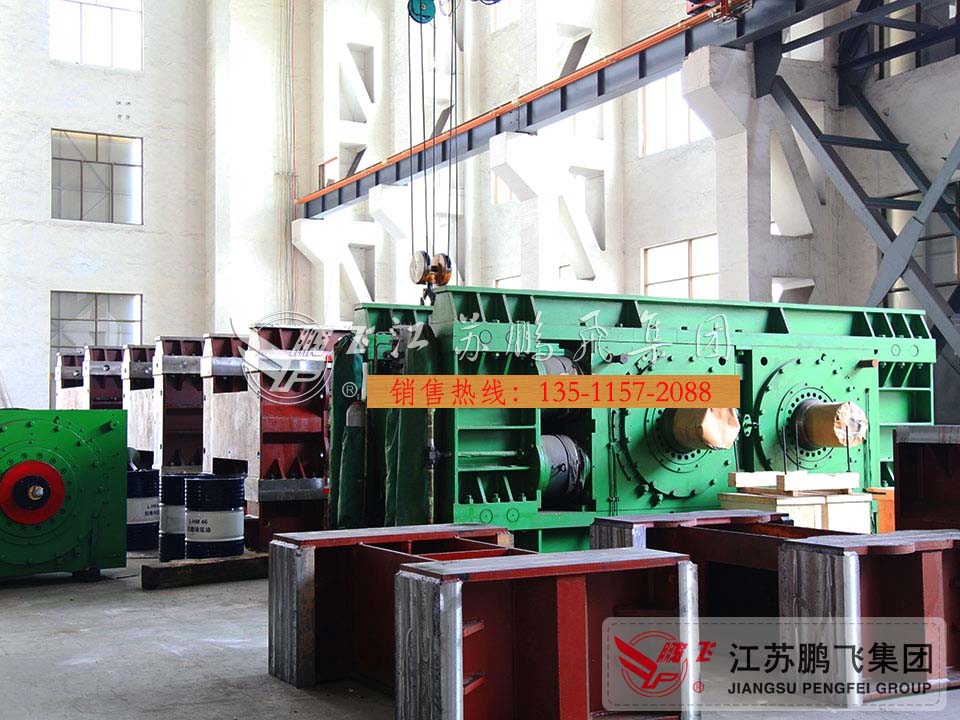

Rolling press production view
=========================================================================================================
As world-known and high-quality cement machinery general contractor, Jiangsu Pengfei Group Co., Ltd can provide you with various machines, such as cement production line, cement grinding plant, active lime production line, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, drying equipment, cooling equipment, compound fertilizer equipment, Conveying Lifting Packing Equipment, Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Iran, Japan, South Korea, Bengal, Pakistan, Turkey, Burma, Vietnam, South Africa, Columbia, Bolivia, etc. If you need equipment such as rotary kiln, ball mill, vertical mill, rolling machine , please don't hesitate to contact us.
