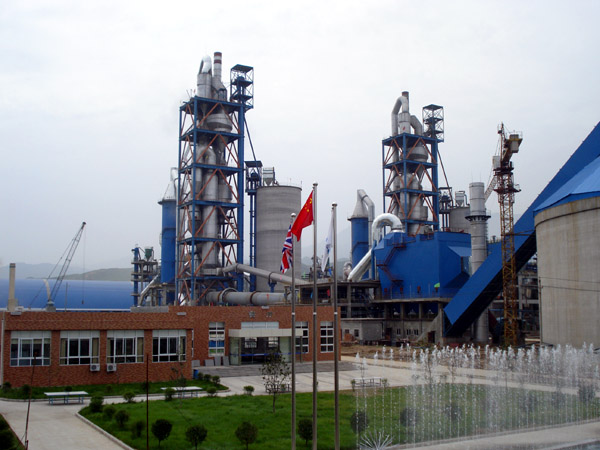

Description of New Type Dry Process Cement Production Line:
This new type dry process cement production line is a kind of process mainly used for small, medium and large-scale cement plants. Its preheater employs outside kiln precalciner. Capable of utilizing the waste heat from kiln inlet to decompose raw meal, this line is good at saving electricity and heat. Its closed production line makes it possible to reduce its ambient dust pollution to less than 50mg/Nm3. Besides, its capacity to make use waste heat makes it quite cost efficient for users.

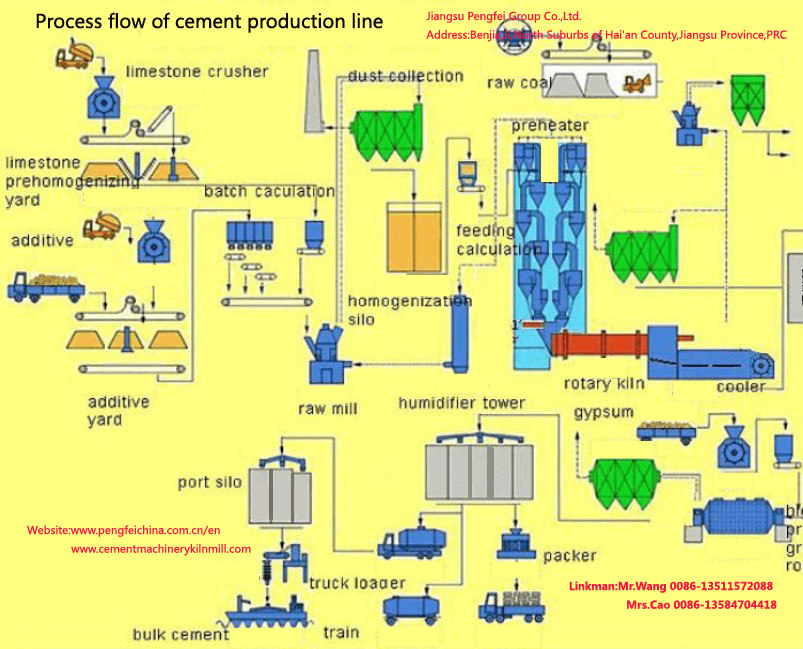

Production Flow of New Type Dry Process Cement Production Line:
1. Crushing and Pre-homogenizing:
Most of the raw materials, like limestone, clay, iron ores, and coal, should be crushed before their pre-homogenization. Limestone is the primary material in this line, and due to its large particle size and high hardness, its good crushing plays an important role in the whole line. Special stacking and reclaiming technology has been used in the pre-homogenizing process so that raw materials can be better primarily homogenized.
2. Raw Meal Preparing:
Since the raw meal grinding work takes up more than 30% labor force in the whole dry process cement production line, it is quite important to choose appropriate grinding equipment and technological process so that high-quality products can be obtained.
3. Raw Meal Homogenizing:
The raw meal homogenization is a key factor for stable clinker calcination.
4. Preheating and Decomposing:
The preheater is used to preheat as well as decompose raw meal. So the length of the rotary kiln is effectively shortened. And the raw meal can fully exchange heat with the hot gases from the kiln. Because of its rapid and high-efficiency heat transfer, the production efficiency and heat consumption of this production line are greatly improved.
5. Clinker Calcining:
After its preheating and pre-decomposing, the raw meal will be calcined in the rotary kiln, where the generated carbonate will be further decomposed. Meanwhile, a series of solid phase reactions will take place.
6. Cement Grinding:
As the last process, the cement grinding will consume a great deal of electricity. And in this process, special size granule cement will be obtained.
7. Cement Packaging:
The cement can be transported in bulk or in bags.
日產5000噸新型干法水泥生產線項目報價單
Proposal for 5000tpd new dry process cement production line
1、建設條件
Construction condition
（1）建設規模：一條日產5000噸新型干法水泥生產線。
Construction scope: a unit 5000tpd new dry process cement production line
（2）原料：采用石灰石、砂巖、硫酸渣、廢土四組分配料，配料比例為石灰石：砂巖、硫酸渣、廢土=80.02:9.72:2.92:7.16
Raw material: uses limestone、sandstone、sulfur acid residue and spent clay four component ingredient; its ingredient proportion ratio: 80.02:9.72:2.92:7.16
（3）全線裝機容量：35000KW
Installed capacity of the whole line: 35000KW
2. 主機設備
Main equipments:
| 序號 Sr. No. | 主機名稱、規格、型號 Descriptions | 臺數 Quantity | 主要技術性能 Main technical Performance | 能力 Capacity | 電機功率 Power of motor | 備注 Remarks |
| （臺） （Unit） | (t/h) | (kW) | (%) | |||
| 1 | 單段錘式破碎機 2022F Hammer crusher 2022F | 1 | 出料粒度<75mm Output granulating<75mm | 700 | 800 | |
| 2 | 石灰石預均化堆場 Limestone pre-homogenizing storage shed | 1 | 堆料1000t/h 取料500t/h Stocking capacity: 1000t/h drawing capacity: 500t/h | 儲量50000t Storage Capacity: 50000t | ||
| 3 | HRM4800立式磨 HRM4800 vertical mill | 1 | 細度14% Fineness 14% | 400 | 3800 | |
| 4 | HCR5000分解爐預熱器 HCR5000 pre-heater with calciner | 1 | 入窯分解率>90% Calcining rate feed to kiln is more than 90% | 230 | ||
| 5 | φ4.8×74m回轉窯 φ4.8×74m rotary kiln | 1 | 斜度：4% n=0.6-4.0 Inclination: 4% | 230 | 630 | |
| 6 | 窯氣梁篦冷機 Kiln gas beam grate cooler | 1 | 出料溫度=環境+65℃ Discharge temperature=ambient +65℃ | 230 | 165 | |
| 7 | HRM2200立式煤磨 HRM2200 vertical coal mill | 1 | 產品細度8% Fineness of product 8% | 45 | 630 | |
| 8 | 高溫風機 I.D Fan | 1 | 風量：920000m3/h 風壓：8000Pa Air flow: 920000m3/h Pressure: 8000Pa | 2500 | ||
| 9 | 窯尾電收塵器 Electrostatic precipitator at kiln end | 1 | 風量：820000m3/h 排放濃度<50mg/m3 Air flow: 820000m3/h Outlet air dust content:<50mg/m3 | 310m2 | ||
| 10 | 輥壓機Roller | 2 | HFCG140/80 | 365 | 500 | |
| 11 | 水泥磨Cement Mill | 2 | φ4.2×13m | 135 | 3550 | |
| 12 | 八嘴回轉式包裝機 8-spout rotary packing machine | 4 | 八嘴 8 spouts | 120t/h | ||
3、物料儲存方式、儲存量
Storage form and storage capacity of materials
| 序號 Sr. no. | 物料名稱 Name of materials | 儲庫規格(m) Size of Storage silo (m) | 儲存量(t) Storage capacity (t) | 備注 Remarks |
| 1 | 石灰石 Limestone | φ90m預均化堆場 φ90m Pre-homogenizing Storage shed | 47000 | |
| 2 | 原料 Raw material | 42×120m預均化堆場 42×120m Pre-homogenizing Storage shed | 25000 | |
| 3 | 生料Raw meal | φ22.5×52m均化庫 φ22.5×52m Homogenizing silo | 17000 | |
| 4 | 熟料Clinker | φ40×50m | 60000 |
=========================================================================================================
