PFRM30 vertical mill
使用手冊
User manual
Jiangsu Pengfei Group Co., Ltd.
目 錄
Catalog
第一部分 概述
Part One Summarize
第二部分 結構介紹及安裝
Part Two Structure Introduction and Installation
一、結構及工作原理Structure and working principle
二、技術參數及性能Technical parameters and performance
三、設備安裝Equipment installation
四、液壓及潤滑系統的酸洗安裝Acid pickling installation of hydraulic and lubrication systems
第三部分 PFRM30立式磨調試及使用
Part Three Commissioning & usage of PFRM30 cement vertical roller mill
一、前言Foreword
二、磨機分部件試運行Sub-components test run of mill
三、立式磨整機空負荷試運行Non- load test run of vertical mill
四、立式磨帶負荷試運行Load test run of vertical mill
五、人員培訓Staff training
六、磨機操作Operation of mill
七、可能出現的問題及解決辦法Possible problems and solutions
八、系統操作System Operation
第四部分 PFRM30立式磨維護及檢修
Part Four Maintenance and overhaul of PFRM30 vertical mill
一、前言Foreword
二、磨機的維護保養及檢修Maintenance and repair of mill
三、潤滑表Lubrication table
第一部分 概述
Part One Summarize
PFRM30立式磨是江蘇鵬飛集團股份有限公司榮譽產品，該型立式磨經多年生產實踐考驗，產品性能不斷提高，逐步跨入國際同類產品先進行列，深得國內外廣大用戶青睞。
PFRM30 vertical mill is one of honor products of Jiangsu Pengfei Group Co., Ltd., through many years of production practice tests for this vertical mill, product performance continuously improved, gradually entered the international advanced level of similar products, won the majority of users at home and abroad.
PFRM30立式磨是一種技術性能優異的烘干兼粉磨設備，主要用于水泥的粉磨，也可廣泛應用于建材、輕工、化工、火力發電等行業。該型立式磨具有粉磨效率高、電耗低、入料粒度大、產品細度易于調節、設備工藝流程簡單、占地面積小、噪音低、揚塵小、使用維護簡單、運行費用低、耐磨材料消耗少等優點。除此之外，該型立式磨還具有如下獨特性能：
PFRM30 vertical mill is drying and grinding equipment with high technical performance, mainly used in cement grinding, it can also be widely used in building materials, light industry, chemical industry, power generation and other industries. The vertical mill is with high efficiency, low power consumption, large feeding size, product fineness is easy to adjust, equipment process is simple, small covering area, low noise, small fugitive dust, use and maintenance are simple, low costs for operating, less consumption for wear material and other advantages. In addition, the vertical mill also has the following unique features:
1．磨輥可用液壓裝置翻出機外，更換輥套襯板及磨機檢修空間大，檢修作業十分方便。
Move the roller out of the mill by the hydraulic unit, replace the roller sleeve lining and large maintenance space of mill, maintenance operations is very convenient.
2．磨輥輥套能翻面使用，延長了耐磨材料的使用壽命。
Grinding roller sleeve can be used upside down, extending the life of wear-resistant materials.
3．開機前無需在磨盤上布料，并且磨機可空載啟動，免除開機難的煩惱。
Material layer is not required to form on the table before starting the mill, and mill can be start with non-load, eliminating worries of difficulty of starting.
4．采用磨輥限位裝置，避免磨機工作時因斷料而產生的劇烈震動。
Adopt limiting device of grinding roller, avoid the severe shock caused by breaking material during operation of mill.
5．采用新型磨輥密封裝置，密封更加可靠，并且無需密封風機。
Adopt the sealing device of new grinding roller, the sealing is more reliable and sealing fan is not required.
6．磨輥軸承采用油浸式潤滑，免去外循環潤滑。
Grinding roller bearing adopts oil - immersed lubrication, eliminating the external circulation lubrication.
7．采用外循環系統，降低風環處的風速，減少立磨排風機功率，改善磨機的啟動及停機條件，減少維護時的清料時間。
Adopt external circulation system, reduce wind speed at the wind ring, reduce exhaust fan power of vertical mill, improve the mill's start-up and shutdown conditions, and reduce time of clearing material during maintenance
第二部分 結構介紹及安裝
Part two. Structure instruction and installation
一、 結構及工作原理
I. Structure and working principle

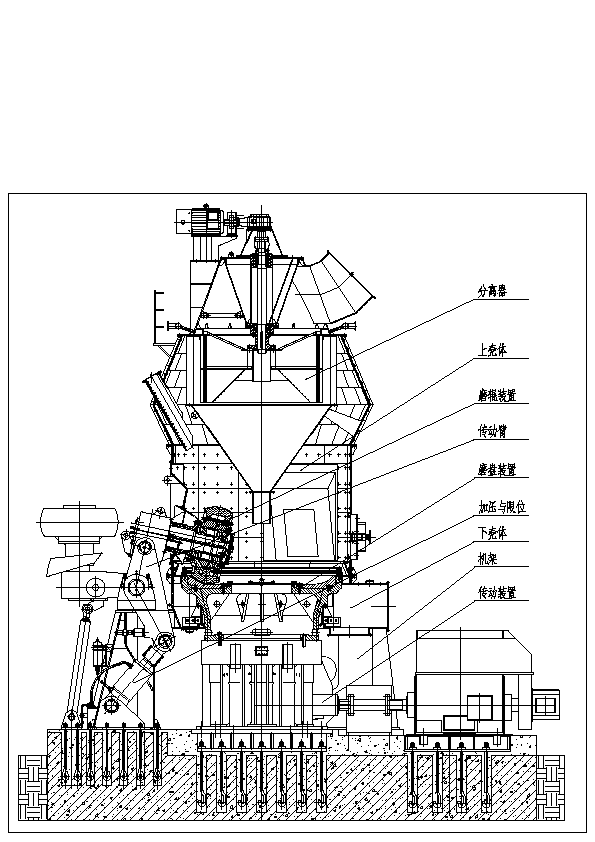

㈠.結構（見下圖）
(i) Structure (see below picture)
PFRM型立式磨作為一種新型節能粉磨設備，其工作原理是：
As the new type energy saving grinding equipment, the working principle of PFRM vertical mill is as follows.
電動機驅動減速機帶動磨盤轉動，需粉磨的物料由鎖風喂料設備送入旋轉的磨盤中心，在離心力作用下，物料向磨盤周邊移動，進入粉磨輥道。在磨輥液壓力的作用下，物料受到擠壓、研磨和剪切作用而被粉碎。同時，熱風從圍繞磨盤的風環高速均勻向上噴出，粉磨后的物料被風環處的高速氣流吹起，一方面把粒度較粗的物料吹回磨盤重新粉磨，另一方面對懸浮物料進行烘干，細粉則由熱風帶入分離器進行分級，合格的細粉隨同氣流出磨，由收塵設備收集下來即為產品，不合格的粗粉在分離器葉片作用下重新落至磨盤，與新喂入的物料一起重新粉磨，如此循環，完成粉磨作業全過程。
The motor drives reducer to drive the mill disk rotate. The material to be ground is fed to the rotating mill disk center by air lock feeder. The material moves to the mill disk circum and enters into grinding roller way under the effect of centrifugal force. Meanwhile, the hot air upward sprays uniformly at high speed from the air ring around mill disk. The ground material is blown by high speed air flow at air ring. The coarse material is blown to mill disk for regrinding. The suspended material is dried and the fine powder is fed to separator for grading by hot air. The qualified fine powder discharged from mill along with air flow and collected by dust collector is the product. The unqualified coarse powder re-falls to the mill disk under the effect of separator blade and is reground with new fed material. This process cycles until the grinding work is completed.
㈡.主要部件的結構形式及技術特點
(ii) Structural type and technical feature of main part
1.傳動裝置 Driving device
立式磨的傳動裝置由主電機、聯軸器、減速機三部分組成，安裝在磨機下部，既要帶動磨盤傳動，還要承受磨盤、物料、磨輥的重量以及加壓裝置施加的碾磨壓力，是立式磨中最重要的部件之一。潤滑系統采用獨立的油站，并有油壓、油溫的自動保護系統，使全套裝置工作安全可靠。該型式的減速機具有體積小、重量輕、減速比大、傳動效率高等優點。關于主減速機的結構、工作原理等請詳細查閱《MLX200立式磨減速齒輪箱使用維護說明書》。
The drive device of vertical mill contains main motor, coupling and reducer. It is installed in the bottom of the mill. It need to not only drive the mill disk to drive, but also bear the weight of mill disk, material and mill roller as well as grinding pressure brought by pressure device. It is one of the most important parts of vertical mill. Lubrication system adopts independent oil station with oil pressure and temperature automatic protection system to make the whole device work safely and reliably. This type of reducer has small volume, light weight, large reduction ratio and high driving efficiency. The structure and working principle etc. please refer to
2.碾磨裝置 Grinding device
磨盤和磨輥是重要的研磨部件，它的形狀設計必須使被粉磨的物料在磨盤上形成厚度均勻穩定的料床，因此合理的磨盤形狀配以相適應的磨輥，對于穩定料層、提高粉磨效率、減少研磨消耗有著極為重要的作用。通過大量的調研和類比，我們采用盤形的磨盤形狀和輪胎形輥套，輥套為對稱結構，在磨損到一定程度后可翻面使用，延長其使用壽命。磨盤周邊有可以調節料層厚度的擋料圈。
Mill disk and mill roller are important grinding parts. The shape design of the grinding device must make the material form material bed with uniform and stable thickness on the mill disk, so reasonable mill disk shape matched with suitable mill roller has very important effect in steadying material layer, improving grinding efficiency and reducing grinding consumption. Through a mass of researching and analogy, we use disk type mill disk and tyre type roller shell. Roller shell is symmetrical structure. It can be turn-over used after a certain wear to extend its service lift. The retention rings are located around the mill disk to adjust the thickness of material layer.
3.加壓裝置 Pressure device
采用液壓自動或手動控制系統來施加及控制其對物料的作用力，可以根據物料易磨性的變化而自動地調整壓力，因而使磨機經常保持在最經濟條件下運行，這樣，既可以減少無用功的消耗，又能使輥套、襯板的壽命得到延長。同時，由于蓄能器的緩沖作用，使液壓缸施加壓力具有較大的彈性，又可自動調節，當遇到大而堅硬的雜物時，磨輥可以跳起，從而避免粉磨部件及傳動裝置因承受過大荷載而損壞。
Pressure device adopts automatic or manual control system to impose and control its force to material. It can automatically adjust pressure according to the change of material grindability thus the mill always runs under the most economic conditions to reduce idle work consumption and extend the service life of roller shell and lining plate. Meanwhile, the buffer action of energy accumulator makes the hydraulic cylinder have large elasticity imposing pressure and adjust automatically. When meet large and hard sundries, the mill roller can jump to avoid damage caused by grinding part and driving device undertaking over load.
4.限位裝置 Limit device
立式磨獨特的限位裝置可以使磨機輕載啟動，磨輥和磨盤之間的間隙可調，這樣既能保持穩定的料層厚度，提高粉磨效率，又能保證在斷料等不正常情況下磨輥和磨盤不直接接觸，避免磨機振動，對減速機起到保護作用。
The unique limit device of vertical mill can make the mill start under load. The gap between mill roller and mill disk can be adjusted. It can keep stable thickness of material layer, improve grinding efficiency, and ensure the mill roller and mill disk not contact directly under unnormal conditions such as material interrupt to avoid mill vibration thus protect reducer.
5.分離裝置 Separating device
分離器設計為機械傳動、轉速可調的動態分離器，該分離器通過錐形轉子高速回轉，葉片與粗顆粒撞擊，給物料以較大的圓周速度，產生較大的離心力，使其進行分離，細顆粒可通過分離器葉片之間間隙出磨，由收塵器進行收集。該分離器分級效率高，調節余地大。
The separator is a dynamic separator with mechanical drive and adjustable rotating speed. The cone rotor rotates in high speed and the blade impacts coarse particle to provide large circular velocity to the material and generate large centrifugal force to separate the material. The fine particle can be discharged from mill through the gap between separator blades and collected by dust collector. This separator has high grading efficiency and large adjusting scope.
6.磨輥裝置 Grinding roller device
磨輥的裝置是采用一對調心滾子軸承，設計時對軸承作等壽命計算，軸承密封腔延伸到機殼外，不與含塵氣體接觸，所以只用簡單的填料密封就能保證磨輥軸承不進灰。磨輥設計為斜面安裝，楔形環壓緊，更換輥套十分方便。
Grinding roller device adopts a pair of self-aligning roller bearings. During design, make equal lift calculating for bearing. The seal chamber of bearing extends to the outside of mill shell. It doesn’t contact dust air so simple packing seal can ensure no dust enter into grinding roller bearing. Grinding roller is designed as slope installation and impacted by wedge shape ring to make the roller shell change easily.
7.磨機殼體及機架 Mill shell and frame
立式磨的殼體分為上殼體、下殼體和機架部分，每部分均采用螺栓連接，下殼體焊接在三個機架上。
Vertical mill’s shell divides into upper shell, lower shell and frame. Each part is connected by bolt. The lower shell is welded on three frames.
二、 技術參數及性能
II. Technical parameter and performance
㈠、 主要技術參數
(i) Main technical parameter
規格型號：Specification and type: PFRM30
磨盤中徑：Mill disk intermediate diameter: φ2800
磨輥直徑：Grinding roller diameter: φ1900mm
磨輥數量：Grinding roller no.: 3個
磨盤轉速： Mill disk rotating speed: 28.5r/min
最大入料粒度：Max. feed size: ≤50mm
入磨物料水份：Material inlet moisture: ≤10%
產品細度：Product fineness 比表面積 Specific surface area ≥380m2/kg
產 量：Output: ≥65t/h
產品水份：Product moisture: ≤1.0%
入磨風溫：Inlet air temperature: ≤350℃
出磨風溫：Outlet air temperature: 80～90℃
出磨風量：Outlet air volume: 200000m3/h
磨機壓降： Mill pressure drop: 5500～7500Pa
液壓系統工作壓力：Hydraulic system working pressure: 8～12Mpa
磨機外形尺寸：Mill overall dimension: 長：Length: 12000mm
寬：Width: 9380mm
高：Height: 13433mm
磨機總重量：Mill total weight: 328000kg
㈡、 主電機
(ii) Main motor
型號：Type: YRKK710-6
功率：Power: 1800KW
頻率：Frequency: 60Hz
轉速：Rotating speed: 1192r/min
電壓：Voltage: 10KV
防護等級：Protection grade: IP54
㈢、 主減速機
(iii) Main reducer
生產廠家：南京高精齒輪股份有限公司
Manufacturer: NGC
型 號：Type: MLX200
數 量：Qty.: 1臺set
傳動功率：Driving power: 1800kW
速 比：Speed ratio: 41.8
額定軸向推力：Rated axial thrust: 5100kN
最大軸向推力：Max. axial thrust: 16600kN
服務系數： Service factor ≥2.5AGMA
旋轉方向：從上往下看，推力盤為順時針方向旋轉
Rotating direction: look at it from above, thrust disk rotates clockwise
潤滑油進、出口油管側向：人站在輸入軸端面向減速機，進油口2個、出油口1個
Lubricating oil inlet and outlet oil tube side direction: people stands at input shaft end and faces to reducer, two oil inlets, one oil outlet
㈣、高低壓稀油站及輔助油箱
(iv) High and low thin oil station and auxiliary oil tank
型 號：Type: XGD-C160-500
生產廠家：四川川潤股份液壓潤滑有限公司
Manufacturer: Sichuan Chuanrun Group Hydraulic Lubrication Co., Ltd.
潤滑油量：Lubrication oil volume: 500L/min(低壓部分low pressure part)；160L/min(高壓部分high pressure part)
潤滑油壓：Lubrication oil pressure高壓：High pressure: 32MPa； 低壓：Low pressure: 0.2~0.4MPa
潤滑油品：N320中負荷工業齒輪油
Lubrication oil quality: N320 medium load industrial gear oil
環境溫度：Ambient temperature: -20℃ ~ +40℃
冷卻水量：Cooling water consumption: 30m3/h
冷卻水溫：Cooling water temperature ≤28℃，
工作班制：100%工作負荷，每天連續工作24小時
Work shift: 100% working load, continuous working 24 hours everyday
㈤、分離器
(v) Separator
電機型號：Motor type: YVF355M-6
電機功率：Motor power: 160KW
頻率：Frequency: 60Hz
電機轉速：Motor rotating speed: 0～1200r/min
減速機型號：Reducer type: B2SV07
旋轉方向： 從上往下看，輸出軸為順時針方向旋轉
Rotating direction: look at it from above, output shaft rotates clockwise
減速機比：Reducer speed ratio: 5.6
潤滑油： 320#工業齒輪油
Lubrication oil: 320# industrial gear oil
㈥、液壓系統
(vi) Hydraulic system
型號：Type:
液壓泵電機功率：Hydraulic pump motor power: 18.5KW
工作壓力：Working pressure: ≤12MPa
最大壓力：Max. pressure: 20MPa
流量：Flow rate: 58L/min
液壓油： N46抗磨液壓油
Hydraulic oil: N46 antiwear hydraulic oil
油箱容積：Oil tank volume: L
三.設備安裝
III. Equipment installation
㈠、準備工作
(i) Preparatory work
1. 水平測量儀；Horizontal measuring gauge
2. 框式水平儀（精度0.02mm/M）；Frame level meter (accuracy 0.02mm/M)
3. 起重設備,各種常用工具；Hoisting equipment, kinds of general tools
4. 塞尺Filler gauge（0.05～1.00mm）；
5. 墊鐵Sizing block（規格specification 300×200×25）、楔鐵若干some wedges（用戶自備user provides）；
6. 基礎劃線：Foundation lineation
首先將設備基礎清理打掃干凈，尤其是地腳螺栓孔內不得有積水、木塊、碎石等雜物。為了二次灌漿結合緊密，基礎表面必須鑿毛，基礎周圍應填平、夯實。
Firstly, clean the equipment foundation. There should be no water, wood block, gravel inside the foundation bolt hole. For the tight combination of secondary grouting, the foundation surface should be roughened and the circum should be filled and leveled up as well as tamped.
其次對照土建圖，安裝圖和設備實際尺寸，對設備基礎進行校核和驗收，內容包括檢查土建單位提供的中心線、標高點是否正確，結合設備和工藝圖檢查基礎的外形尺寸、基礎標高尺寸、基礎地腳螺栓孔的幾何尺寸及相互位置尺寸等。
Secondly, check and accept the equipment foundation according to the construction layout drawing, installation drawing and equipment actual dimension. The content includes checking if the centerline and elevation point provided by the construction company is correct, and checking foundation overall dimension, foundation elevation dimension, foundation bolt hole’s physical dimension and mutual position dimension according to equipment and process drawing.
按設計圖紙坐標位置，用鋼盤尺測量出設備基礎中心線，并將縱橫中心線固定在中心標板上或用墨線劃在基礎上，并在安裝過程中注意保留。
According to the coordinate position in design drawing, measure equipment foundation centerline by steel tape and fix the vertically and horizontally centerline on center board or mark it out on the foundation by chalk line. Pay attention to keep it during installation.
㈡.安裝工作
(ii) Installation work
1.按照PFRM30立式磨基礎圖要求,檢查地腳孔的位置及予留孔尺寸是否和設備相吻合。
According to the requirement of PFRM320 vertical mill foundation drawing, check if the foundation hole position and reserved hole dimension can fit the equipment.
2.檢查設備地腳孔的尺寸,協調各地腳孔的偏差確定相對中心。
Check equipment foundation hole dimension and coordinate each foundation hole’s deviation to confirm relative center.
3.傳動裝置的安裝：Driving device installation
根據土建施工圖找出±0.00平面,使磨機安裝標高符合工藝施工圖要求。
Find out ±0.00 plane according to construction working drawing to make mill installation elevation conform to the requirement of process working drawing.
首先安裝減速機底座,穿好地腳螺栓孔,螺栓要處于自然狀態,分別在各地腳孔的中心。
Firstly install reducer base and perforate foundation bolt hole. The bolt should be in the raw and in the center of each foundation hole.
主減速機及其底座的安裝是整個磨機安裝的核心，其他零部件的安裝必須以主減速機的中心為基準，因此主減速機應定位準確，其中心與基礎中心應重合，偏差不大于±5.0mm。
The installation of main reducer and its base is the core of the whole installation. The installation of other parts must take main reducer center as datum. Therefore, the location of main reducer should be accurate. Main reducer center should coincide with foundation center and the deviation is not more than ±5.0mm.
在進行主減速機底座的安裝時，應在每個地腳螺栓旁放置一組墊鐵，每組墊鐵不應超過四塊，其中一對為斜墊鐵，斜墊鐵露出底座外的長度~30mm，墊鐵與墊鐵之間，墊鐵與底座之間應緊密貼合。地腳螺栓在孔內應自然下垂，不應碰孔底和孔壁，螺栓應露出螺母2—3扣螺紋。
During installation of main reducer base, a group of sizing blocks no more than 4 pieces should be put at the side of each foundation bolt. Among them, there is a pair of wedge liners. The length of wedge liner came out of base is about 30mm. Each sizing block should closely fit sizing block and base. The foundation bolt should naturally fall in the hole without touching hole bottom and wall. The bolt should come out of nut 2-3 threads.
地腳孔灌漿前應將孔壁用水淋濕，并再次確認底座位置、標高是否準確。灌漿時應將混凝土搗實，并防止地腳螺栓歪斜。灌漿后須每天加水養護，直到混凝土強度達到規定強度的75%。
Before foundation bolt grouting, wet the hole wall with water and recheck if the base position and elevation are correct. During grouting, tamp the concrete to avoid foundation bolt deflect. After grouting, make water maintenance everyday till the concrete strength reaches to specified 75%.
擰緊地腳螺栓時，應使每個地腳螺栓均勻受力。調整底座水平時，必須使用墊鐵來調整，不得用擰緊或放松地腳螺栓的辦法來調整，其水平度應達到0.1mm/m。完成后，墊鐵與墊鐵之間，墊鐵與底座之間應點焊固定。
When screw up foundation bolt, make every foundation bolt get uniform force. Must use sizing block to adjust base level must not screw up or relax foundation bolt to adjust. The levelness should reach to 0.1mm/m. After completing, spot weld between sizing block and sizing block as well as sizing block and base to fix them.
主減速機與底座聯接時應預先將定位銷裝好，再裝聯接螺栓，擰緊螺栓時，應使每個螺栓受力均勻。
When connect main reducer and base, pre-install locating pin and then install connecting bolt. When screw up bolt, make each bolt get uniform force.
安裝主電機時，應先將主電機與底板用螺栓聯接成一體，并在主電機與底板間加墊~2.0mm。每個底板地腳螺栓旁放置一組墊鐵，地腳螺栓在孔內應自然下垂，并使主電機與主減速機中心對中找正，定位后在地腳孔內灌漿搗實，經養護待混凝土強度達到規定強度75%時，擰緊地腳螺栓，通過墊鐵調整水平，并使主聯軸器達到規定的要求（詳見《MLX200立式磨減速齒輪箱使用說明書》）。安裝完畢后，墊鐵與墊鐵之間，墊鐵與底板之間應點焊固定。
When install main motor, firstly connect main motor and base plate by bolt and add pad about 2.0mm between main motor and base plate. Put a group of sizing blocks at the side of each foundation bolt. The foundation bolt should naturally fall in the hole to make main motor center align to main reducer center. After locating, grout inside the foundation hole and tamp it. After the concrete strength reaches to specified 75% through water maintenance, screw up foundation bolt and adjust level by sizing block to make main coupling reach specified requirement (see
安裝主電機和減速機時,要求聯軸器的徑向跳動不大于0.1mm,端面跳動不大于0.08mm,兩聯軸器間的距離8～10mm。（具體見減速機安裝說明書）
When install main motor and reducer, the radial run-out of coupling should be no more than 0.1mm, the end face run out should be no more than 0.08mm and the distance between two couplings is 8-10mm (details see reducer installation instruction).
4.下殼體、磨盤安裝：Lower shell and mill disk installation
（1）、PFRM30立式磨的機架、下殼體部分由于起吊和運輸問題，必須在現場焊接，現場安裝時要按照設備制造廠對各部件的標記進行安裝。
Due to hoisting and transporting of PFRM30 vertical mill frame and lower shell, they should be welded on site and installed according to MARK of each part made by manufacturer.
安裝下殼體時應以減速機出軸中心線為基準，兩者中心線間的誤差不得超過±2.0mm。
Lower shell installation should take reducer output shaft centerline as datum. The deviation between two centerlines should be no more than ±2.0mm.
將機架部分按上面標記吊裝到相應基礎上，按圖紙要求確定三個機架的正確位置，用連接桿將三個機架初步連接在一起, 地腳螺栓掛好。
Hoist the frame according to MARK to the corresponding foundation. Confirm the correct locations of three frames. Preliminarily connect three frames together by connecting rod and hang foundation bolts.
（2）、將下殼體吊裝到機架上 Hoist lower shell to the frame
利用十字交叉天線來確定筒體中心和減速機出軸中心線之間的同心度，將機架和下殼體焊接在一起，焊縫均為連續角焊縫，焊縫高度為15～20mm，坡口型式及尺寸要符合GB985-88中的要求。
Use cross antenna to confirm the concentricity between shell center and reducer output shaft centerline. Weld frame and lower shell together. The welding line is continuous fillet weld. The welding line height is 15-20mm. The groove type and dimension should conform to the requirement of GB985-88.
（3）、磨盤輕輕吊裝在減速機上，找正并裝上定位銷，均勻用力擰緊聯接螺栓，通過調整下殼體的位置，使磨盤與風環間的徑向間隙基本一致（誤差不得超過±2.0mm,沿磨盤周邊對稱選八處進行檢查），同時檢查下殼體上法蘭與磨盤上端面間的軸向距離是否滿足安裝要求，PFRM2800立式磨下殼體上法蘭與磨盤上端面間的軸向距離設計為45mm，可通過調整墊鐵進行調整。
The mill disk is lightly hoisted on the reducer. Align and install locating pin, and uniformly screw up connecting bolt. Make the radial clearance between mill disk and air ring basic uniform by adjusting the position of lower shell (the deviation should be no more than ±2.0mm, choose 8 symmetric points along the mill disk circum to check). Meanwhile, check if the axial distance between lower shell upper flange and mill disk upper end face can meet installation requirements. The axial distance between PRM2800 vertical mill lower shell upper flange and mill disk upper end face is designed as 45mm. It can be adjusted by adjusting sizing block.
（4）、對機架的地腳螺栓孔進行一次灌漿。
Make one time grouting for frame’s foundation bolt.
（5）、七天后精校下殼體水平（既6個軸承座的水平）。6個軸承座的高度誤差不大于2mm。
Accurately adjust lower shell level (that is the level of 6 bearing seats) after 7 days. The height deviation of 6 bearing seats should be no more than 2mm.
最后擰緊地腳螺栓。Screw up foundation bolt at last.
5.上殼體、磨輥及傳動臂的安裝 Installation of upper shell, grinding roller and transmission arm
按設備圖紙要求將上殼體吊裝到下殼體上，找正后均勻用力緊固聯接螺栓。將事先組裝好的磨輥和傳動臂吊裝到下殼體機架的軸承座上，使磨輥輕輕置于磨盤上，滑動軸承上涂潤滑脂，擰緊軸承座的聯接螺栓，再安裝磨輥的密封門，安裝時應注意密封的嚴密性。
Hoist upper shell on lower shell according to equipment drawing requirement. Align and fasten connecting bolt with uniform force. Hoist the assembled grinding roller and transmission arm on the bearing seat of lower shell frame. Lightly put the grinding roller on the mill disk. Coat lubrication grease on sliding bearing and screw up connecting bolt of bearing seat and then install the sealing door of grinding roller. Pay attention to the leakproofness of sealing during installation.
6.限位裝置及分離器的安裝 Installation of limit device and separator
預先組裝好限位裝置，按設備基礎圖尺寸要求將其就位，并擰出限位螺栓使其與限位頭相接觸，找正后對地腳螺栓灌漿將其固定，待砂漿凝固后，擰緊地腳螺栓。然后再擰出限位螺栓，使磨輥與磨盤之間的距離為5～10mm。接著開始安裝分離器，將預先組裝好的分離器吊裝到上殼體上并找正水平，均勻用力擰緊聯接螺栓，注意法蘭接合面要求嚴格密封。
Assemble limit device in advance. Take it to the place according to the dimensional requirement of equipment foundation drawing and screw out limit bolt to make it contact with limit head. Align and grout foundation bolt to fix it. After the mortar solidified, screw up foundation bolt. Then screw out limit bolt again to make the distance between grinding roller and mill disk in 5-10mm. Next install separator. Hoist assembled separator on upper shell and align. Screw up connecting bolt with uniform force and pay attention to strictly seal the flange mating face.
7.加壓裝置的安裝 Installation of pressure device
將組裝好的加壓裝置按圖紙要求就位，與磨機主體相聯后找正，按圖紙要求檢查工作缸，檢修缸的兩中心孔距，將地腳螺栓灌漿固定，砂漿凝固后擰緊螺栓。
Take the assembled pressure device to the place according to drawing requirement. Align after connecting it with mill body. Check the center hole distance between working cylinder and inspection cylinder according to drawing requirement. Grout foundation bolt to fix it and screw up bolt after the mortar solidified.
8.液壓系統及潤滑系統的安裝 Installation of hydraulic system and lubrication system
根據設備安裝現場的實際情況，備齊液壓系統及潤滑系統所需的各種規格油管，用壓縮空氣吹掃管孔并嚴格清洗干凈，分別按要求進行組合和安裝。
As per the actual condition on site of equipment installation, prepare all kinds of oil pipe for hydraulic system and lubrication system. Blow the pipe hole by compressed air and clean up strictly. Respectively assemble and install as requirements.
制作管路時，焊縫應連續嚴密，管路制作完畢后，每節管路應先壓縮空氣反復吹掃，再用稀鹽酸清洗，最后用清洗油仔細清洗。安裝主減速機至潤滑站的回油管路時，須有≧3/100的斜度，以保證回油順暢。潤滑管路上的聯接法蘭、液壓管路上的管接頭應密封嚴密，不得漏油。液壓管路中與主油缸或檢修油缸聯結部分應用高壓軟管，蓄能器可用支架固定在油缸附近的磨機下機架上，液壓管路應每隔一段距離（大約2M）用管夾固定。
When make pipelines, the welding line should be continuous and tight. After finish them, each section of pipelines should be blown repeatedly by compressed air and cleaned by diluted hydrochloric acid and at last cleaned carefully by cleaning oil. When install the oil return pipeline from main reducer to lubrication station, the pipeline should have the slope ≧3/100 to make the oil return smoothly. The connecting flange on lubrication pipeline and pipe connection on hydraulic pipeline should be sealed tightly without oil leakage. Use high pressure hose for the connecting part of hydraulic pipeline and main oil cylinder or inspection oil cylinder. The energy accumulator can be fixed on the mill lower frame near oil cylinder by support. Hydraulic pipeline should be fixed by pipe clamp at a distance of about 2m.
最后對設備基礎進行整體二次澆灌（下殼體的兩機架內部應予埋排水管）。
At last, make secondary grouting to the whole equipment foundation (pre-embed drainage pipe inside two frames of lower shell).
四.液壓及潤滑系統的酸洗
IV. Acid cleaning of hydraulic and lubrication system
液壓管道安裝分兩步進行，第一步為預安裝（配管），第二步為正式安裝。預安裝是為正式安裝作準備，是確保安裝質量的必要步驟。
The first step of hydraulic pipeline installation is pre-installation (piping) and the second step is formal installation. Pre-installation is to make preparation of formal installation. It is a necessary step to ensure installation quality.
按液壓原理圖及管道安裝示意圖現場制作。
Fabricate on site according to hydraulic principle drawing and pipeline installation drawing.
㈠、預安裝（配管）
(i). Pre-installation (piping)
1.PFRM型系列立式磨的液壓管路系統一般采用無縫鋼管、高壓橡膠軟管等
The hydraulic pipeline system of PFRM vertical mill usually uses seamless steel tube and high pressure hose etc.
2.根據工藝設計和現場的具體情況，首先確定液壓站的位置。
As per process design and actual condition on site, firstly confirm the location of hydraulic station.
3. 配管，管接頭和主管焊接要平直，焊縫要均勻，不得有氣孔、裂紋等影響管路壓力泄漏的缺陷存在，條件允許的廠家應進行壓力試驗。
The welding of piping, pipe connection and main pipe should be straight. The welding line should be uniform without defect such as air hole or crack which may cause pipeline pressure leakage. The manufacturer should take pressure test if he has such ability.
4.各管作記號卸下，準備進行清洗。
Mark each pipe and discharge for cleaning.
5.酸洗 Acid cleaning
一般按下列程序進行 Common process
脫脂→水沖洗→酸洗→中和→水沖洗→干燥空氣吹干→涂液壓油
Degrease-water washing-acid cleaning-neutralize-water washing-dry by dry air-coat hydraulic oi
具體步驟如下：Detailed steps are as follows.
(1)、用榔頭對油管逐點敲打，特別是對焊接處，以達到清除管道內的氧化皮和焊渣、毛刺。
Beat the oil pipe point to point especially to the welded part by hammer to clean up oxide skin inside pipeline as well as welding slag and burr.
(2)、用濃度8～10％的氫氧化鈉溶液灌入油管內，浸泡3～4小時，然后用清水沖洗。
Pour sodium hydroxide solution with 8-10% concentration into oil pipe for 3-4 hours and then use water to wash.
(3)、用濃度15％的鹽酸溶液或磷酸溶液灌入油管內，浸泡6～8小時，然后倒出酸液，再向油管內灌入濃度10％蘇打溶液浸泡1小時后，用清水沖洗，壓縮空氣吹干，機油浸泡1小時。
Pour hydrochloric acid or phosphoric acid solution with 15% concentration into oil pipe for 6-8 hours. Then pour out acid solution and pour soda solution with 10% concentration into oil pipe for 1 hour. After that, use water to wash and dry by compressed air and then pour into machine oil for 1 hour.
(4)、干燥空氣吹干。
Dry by dry air.
㈡.正式安裝
(ii) Formal installation
1. 酸洗后的管道按原作記號安裝回原處，并用相應的管卡固定。
Install the acid cleaned pipeline to the original place as per marks and fix it by corresponding pipe clamp.
2.連接高壓軟管、蓄能器。
Connect high pressure hose and energy accumulator.
