Parameters of PFG120-45 Rolling Machine:
1. Name: PFG120-45 Rolling Machine
2. Material name: raw meal of cement, clinker and so on.
3. Total moisture content: ≤1-1.5%
4. Maximum feeding size: ≤70mm
5. Average feeding size: ≤25mm
6. Discharge size: more than 25% of processed materials are 0.08mm.
7. Productivity: 100-140t/h
8. Operation mode: continuous
9. Power supply mode: voltage: 380V; motor model: Y355L-8
10. Layout mode: 2*220KW power for indoor motor
11. Roller diameter: 1200mm
12. Roller width: 450mm
13. Linear velocity: 1.48m/s
14. Max. crushing capacity of rollers: 70KN/cm

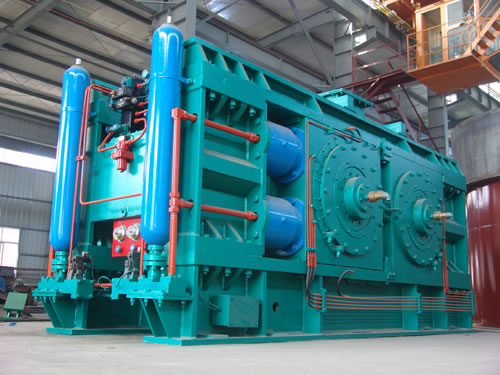

Rolling press production view
=========================================================================================================
As world-known and high-quality cement machinery general contractor, Jiangsu Pengfei Group Co., Ltd can provide you with various machines, such as cement production line, cement grinding plant, active lime production line, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, drying equipment, cooling equipment, compound fertilizer equipment, Conveying Lifting Packing Equipment, Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you need equipment such as rotary kiln, ball mill, vertical mill, rolling machine , please don't hesitate to contact us.
