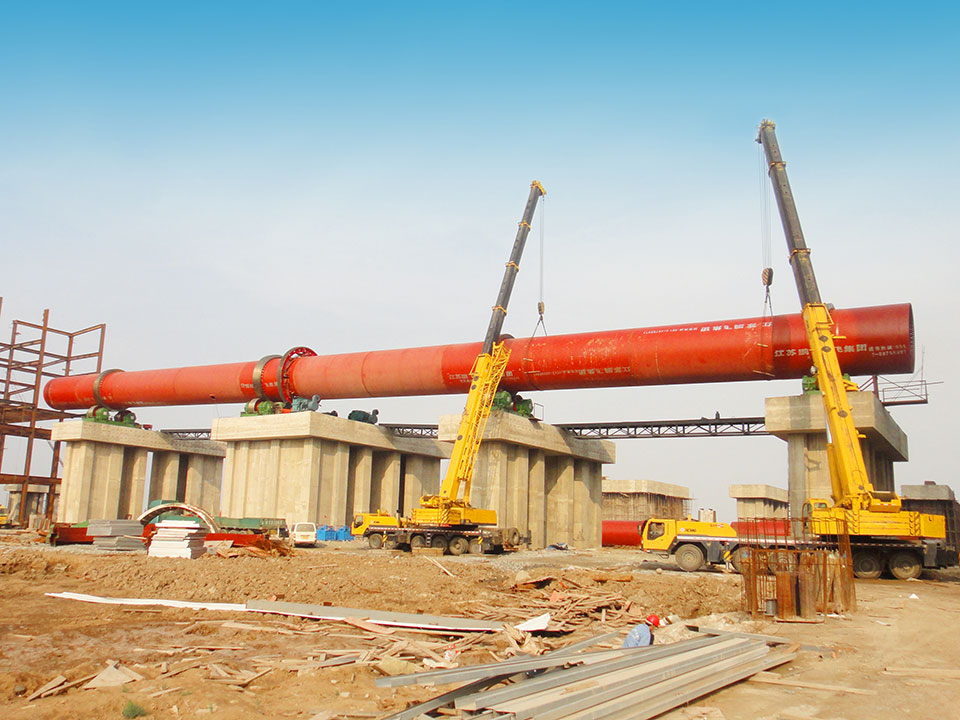

Technical Parameters ofΦ5.5x115m Lateritic Nickel Rotary Kiln:
| Name | Description | Unit |
| Equipment name | Rotary kiln | |
| Specification | Φ5.5x115m | |
| Application | Roasting laterite ores | |
| Amount | 1 | Set |
| Output | 80－100(roasted sand) | t/h |
| Driving mode | Double driving | |
| Type of thrust roller | Hydraulic thrust roller | |
| No. of support | 4 | |
| Slope ( sine) | 3.0% | |
| Rotating speed | ||
| Driving mode | Bilateral double-driving | |
| Main driving | 0.2~1.2 | r/min |
| Auxiliary driving | 6.7 | r/h |
| Sealing mode of kiln head | Sheet steel (provisional) | |
| Sealing mode of kiln end | Air cylinder | |
| Cooling of kiln head | Air cooling | |
| Rotating direction | Clockwise (from discharging end) | |
| Total weight | 1648 ( excluding feed and discharge cover) | t |
| Temperature of discharged materials | 750~850 | ℃ |
| Temperature of waste gases | 200~400 | ℃ |
| Thickness of refractory bricks | 230 | mm |
=====================================================================================================================
As world-known and high-quality cement machinery general contractor, Jiangsu Pengfei Group Co., Ltd can provide you with various machines, such as cement production line, cement grinding plant, active lime production line, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, drying equipment, cooling equipment, compound fertilizer equipment, Conveying Lifting Packing Equipment, Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you need equipment such as rotary kiln, ball mill, vertical mill, rolling machine , please don't hesitate to contact us.
