Φ6.2x87m Rotary Kiln

Technical Performance of Ф6.2x87m Rotary Kiln:
Specification: Ф6.2x87m

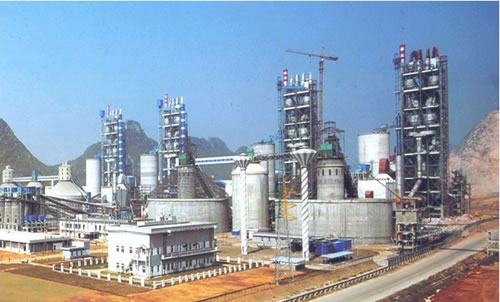

Output: 12000t/d dry process cement production line
Inclination: 3.5%
Amount of supports: 3
Rotating speed: main driving: 0.45~4.5r/min; auxiliary driving: 8.5r/h
Sealing mode: sheet steel for sealing kiln head and end
Cooling of kiln head: air cooling
Cooling of Ⅰ, Ⅱ thrust roller belts: air cooling
Driving mode: bilateral driving; main driving motor: 1050x2 KW.

Main Components ofФ6.2x87m Rotary Kiln:
1. Cooling tube for kiln head
2. Air cooler for Ⅰand Ⅱ thrust roller belt
3. 3 supporting devices
4. Cast alloy steel supporting rollers are designed with solid construction, and some parameters of them are in the following.

5. Cone thrust rollers are made of cast alloy steel, and they have undergone normalizing treatment. The weight of double thrust roller is 5250kg.

=====================================================================================================================
As world-known and high-quality cement machinery general contractor, Jiangsu Pengfei Group Co., Ltd can provide you with various machines, such as cement production line, cement grinding plant, active lime production line, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, drying equipment, cooling equipment, compound fertilizer equipment, Conveying Lifting Packing Equipment, Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey,  Vietnam, South Africa, Columbia, Bolivia, etc. If you need equipment such as rotary kiln, ball mill, vertical mill, rolling machine , please don't hesitate to contact us.
