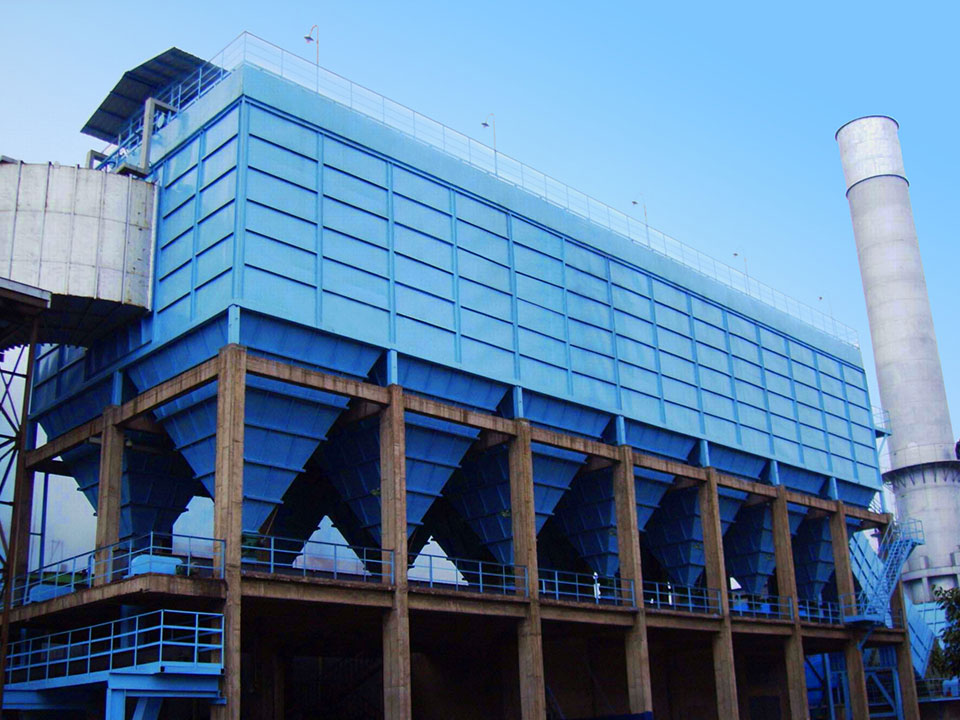

Technical Parameters of BFRS Kiln Inlet Bag Filter:
Model | BFRS700 | BFRS700 | BFRS1200 | BFRS1200 | BFRS1200 | ||
Technical performance | Flue gas treating volume | ≤88500 | 102100 | 310000 | ≤370000 | ≤423000 | |
Gas temperature | <250 | <250 | ≤250 | ≤250 | ≤250 | ||
Feeding dust concentration | ≤80 | 80 | ≤80 | ≤80 | ≤80 | ||
Discharging dust concentration | ≤100 | 100 | ≤100 | ≤100 | ≤100 | ||
Total filtering area (m2) | 4116 | 4872 | 14033 | 16263 | 18586 | ||
Filtration air speed (m/min) | 0.36 | 0.34 | 0.37 | 0.38 | 0.38 | ||
Net filtration air speed (m/min) | 0.5 | 0.46 | 0.45-0.49 | 0.46-0.49 | 0.45-0.48 | ||
Resistance of environmental protection equipment(Pa) | 1470 | 1766 | 1470 | 1470 | 1470 | ||
Pressure of environmental protection equipment(Pa) | 3920 | 3920 | 3920 | 3920 | 3920 | ||
Pressure of air inlet (Pa) | >-1500 | -290~-490 | |||||
Structural performance | Chamber amountxbag amount in each chamber | 6x140=840 | 7x140=980 | 12x138=1656 | 14x138=1932 | 16x138=2208 | |
Specification of filtering bag | φ200x7794 | φ200x7794 | φ302x9296(135 bags) | φ302x9296(135 bags) | φ302x9296(135 bags) | ||
Material of filtering bags | CW300-FQ803 | CW300-FQ803 | CW300-FQ803 | ETWF500 | ETWF500 | ||
Blowback fan modelxstatic pressurexair volume | Y5-47NO8 | 230IEx14〞 | Y5-48 | Y5-47 | Y5-47 | ||
Rotating speed of motorxshaft power | Y200L-4 | 1488rpm | Y280S-4 | Y280S-4 | Y280S-4 | ||
Specification of spiral gate | 300x300 | 14 blowback fans | 16 blowback fans | ||||
Lift valve specificationsxamount | Three φ510 | Seven φ510 | Twelve φ914 | Fourteen φ914 | Sixteen φ914 | ||
Purge valve specificationxamount | One φ510 | One φ460 | One φ914 | One φ914 | One φ914 | ||
Butterfly valvexamount | Six 600 | ||||||
Overall dimensions LxWxH(mm) | 13491x9144 | 26423x3765 | 18288x21232 | 21336x21032 | 24384x21032 | ||
Equipment weight (kg) | 103017 | 108999 | 373890 | 426400 | |||
axial flow fan | 35-11NO6.3 | ||||||
=========================================================================================================
