Description of Rotary Dryer:
Our rotary dryer is typically designed for reducing or minimizing the liquid moisture content of the materials like slag, clay, limestone, etc. And it is widely used in fields of cement, chemical engineering, metallurgy, building material, and so on.

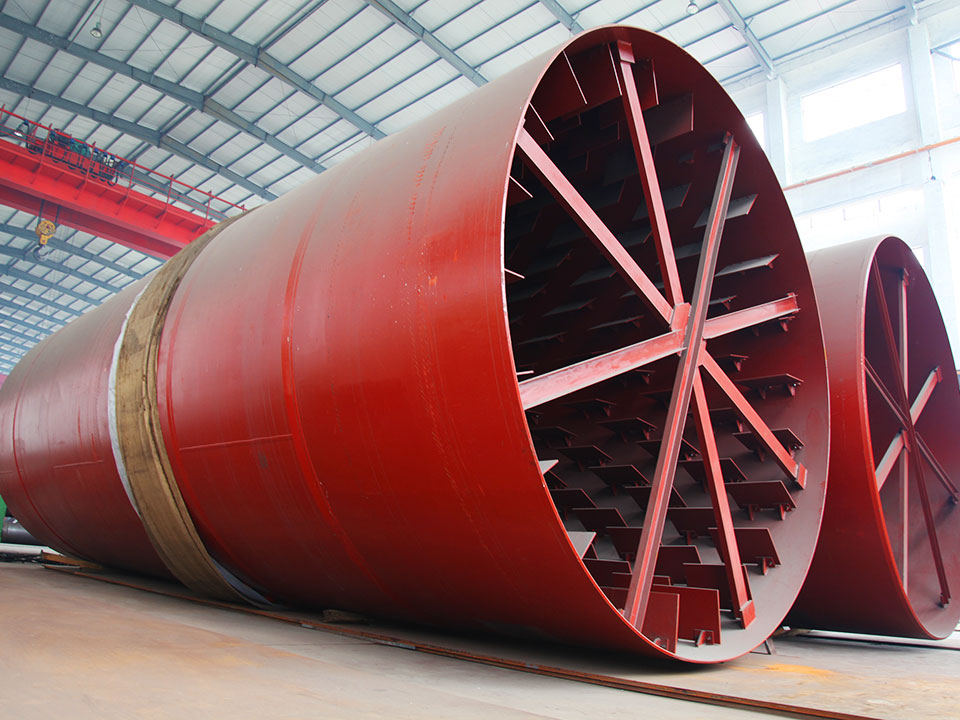

It is mainly comprised of rotary part, striker plate (it is used to block materials), transmission equipment, and supporting device. And it is characterized by high drying capacity, stable performance, low energy consumption, high productivity, and more.
The working principles of this rotary dryer are as follows: its lifting plate can throw and scatter materials into the rotating cylinder, and the hot air will carry away the moisture in the materials. The moisture will turn into water vapor to be discharged into the atmosphere for drying.
Parameters of Rotary Dryer:
Model (m) | Diameter (mm) | Length (mm) | Capacity ( t/h) | Speed (r/min) | Inclined degree (%) | Motor | Speed reducer | Weight (t) | |
Model | Power ( kw) | Model | |||||||
Ф1.5x12 | Ф1500 | 12000 | 6-9 | 1.4-7 | 5 | YCT-225-4B | 15 | JZQ500 | 18.6 |
Ф1.5x14 | Ф1500 | 14000 | 7-10 | 1.4-7 | 5 | YCT-225-4B | 15 | JZQ650 | 17.9 |
Ф1.6x14 | Ф1600 | 14000 | 8-11 | 1.4-7 | 5 | YCT-225-4B | 15 | JZQ650 | 18.6 |
Ф1.8x14 | Ф1800 | 14000 | 9-13 | 3.5-6.5 | 5 | YCT-225-4B | 15 | JZQ650 | 20.85 |
Ф2.0x14 | Ф2000 | 14000 | 11-16 | 2.2-7.4 | 5 | YCT-250-4A | 18.5 | JZQ750 | 23.2 |
Ф2.2x12 | Ф2200 | 12000 | 12-17 | 2.2-7.4 | 5 | YCT-250-4B | 22 | JZQ750 | 30.3 |
Ф2.2x14 | Ф2200 | 14000 | 14-20 | 2.2-7.4 | 5 | YCT-250-4B | 22 | JZQ750 | 32.23 |
Ф2.4x18 | Ф2400 | 18000 | 21-31 | 2.2-7.4 | 4 | YCT-280-4A | 30 | JZQ850 | 45 |
Ф2.4x20 | Ф2400 | 20000 | 23-34 | 2.2-7.4 | 4 | YCT-315-4A | 37 | JZQ850 | 54 |
Ф2.4x22 | Ф2400 | 22000 | 26-38 | 2.2-7.4 | 4 | YCT-315-4A | 37 | JZQ850 | 58 |
Ф2.6x20 | Ф2600 | 20000 | 28-40 | 2.2-7.4 | 4 | YCT-315-4B | 45 | ZQ100 | 60.5 |
Ф2.6x24 | Ф2600 | 24000 | 33-48 | 2.2-7.4 | 4 | YCT-315-4B | 45 | ZQ100 | 72.7 |
Ф3.0x20 | Ф3000 | 20000 | 35-54 | 8.4-3.85 | 4 | YCT-355-4A | 55 | ZL100 | 86 |
Ф3.0x25 | Ф3000 | 25000 | 46-64 | 8.4-3.85 | 4 | YCT-355-4B | 75 | ZL100 | 96 |
Ф3.0x28 | Ф3000 | 28000 | 52-74 | 8.4-3.85 | 4 | YCT-355-4B | 75 | ZL100 | 122 |
Ф3.2x25 | Ф3200 | 25000 | 60-80 | 2.4-7.6 | 4 | YCT-355-4C | 90 | ZL115 | 119 |
=====================================================================================================================
As world-known and high-quality cement machinery general contractor, Jiangsu Pengfei Group Co., Ltd can provide you with various machines, such as cement production line, cement grinding plant, active lime production line, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, drying equipment, cooling equipment, compound fertilizer equipment, Conveying Lifting Packing Equipment, Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you need equipment such as rotary kiln, ball mill, vertical mill, rolling machine , please don't hesitate to contact us.
