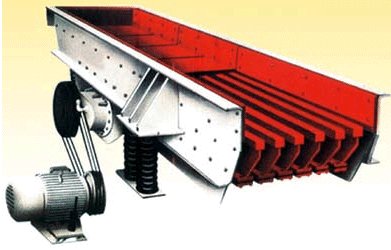

Description of Vibrating Feeder:
This vibrating feeder is mainly used to feed bulk or particle materials evenly, regularly and continuously in various fields. When used in sand production line, it can continuously feed materials for crushing machines, and also carry out coarse screening for materials.
It is widely used in crushing work in industries like metallurgy field, coal or mining industry, mineral refining field, chemical industry, grinding sector, etc.
Features of Vibrating Feeder:
1. Stable vibration, reliable performance, and long service life
2. The vibrating force as well as the material quantity inside the feeder can be adjusted easily.
3. The vibrating motor, used as the driving source, has advantages of low noises, small energy consumption and stable performance.
Parameters of Vibrating Feeder:
| Model | Groove size (mm) | Max.feeding material size (mm) | Processing capacity (t/h) | Rotating speed of spindle (r/min) | Motor power (kw) | inclination angle of groove | Weight (excluding electric motor) (kg) | Overall dimensions (mm) |
| ZSW-300×70 | 3000×700 | ≤500 | 60-120 | 350-800 | 7.5 | 0 | 3225 | 3075×1450×1250 |
| ZSW-380×95 | 3800×950 | ≤500 | 100-160 | 350-800 | 11 | 0 | 4210 | 3882×1684×1340 |
| ZSW-490×100 | 4900×1000 | ≤500 | 120-200 | 350-800 | 15 | 0 | 5004 | 4957×1677×1365 |
| ZSW-360×110 | 3600×1100 | ≤500 | 100-160 | 350-800 | 11 | 0 | 4321 | 3700×1805×1195 |
| ZSW-490×110 | 4900×1100 | ≤580 | 200-300 | 350-800 | 15 | 0 | 6700 | 4957×1841×1365 |
| ZSW-590×130 | 5900×1300 | ≤700 | 300-400 | 750 | 22 | 5 | 7900 | 4957×1841×1365 |
| ZSW-600×110 | 6000×1100 | ≤600 | 400-500 | 350-800 | 22 | 0 | 8200 | 6000×1841×1365 |
Note: Parameters in the form is only for reference, and specific ones should be refer to the signed contract technology.
=====================================================================================================================
