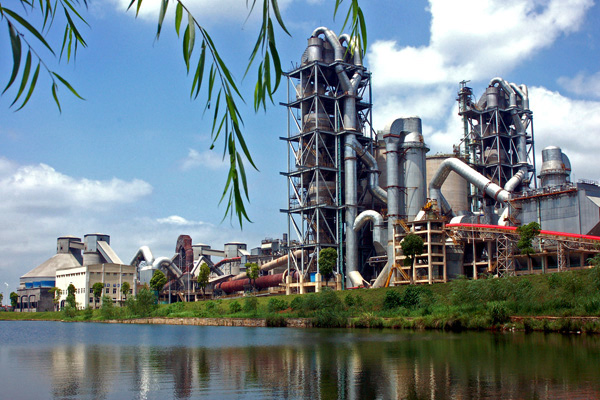

Description of New Type Dry Process Cement Production Line:
This new type dry process cement production line is a kind of process mainly used for small, medium and large-scale cement plants. Its preheater employs outside kiln precalciner. Capable of utilizing the waste heat from kiln inlet to decompose raw meal, this line is good at saving electricity and heat. Its closed production line makes it possible to reduce its ambient dust pollution to less than 50mg/Nm3. Besides, its capacity to make use waste heat makes it quite cost efficient for users.

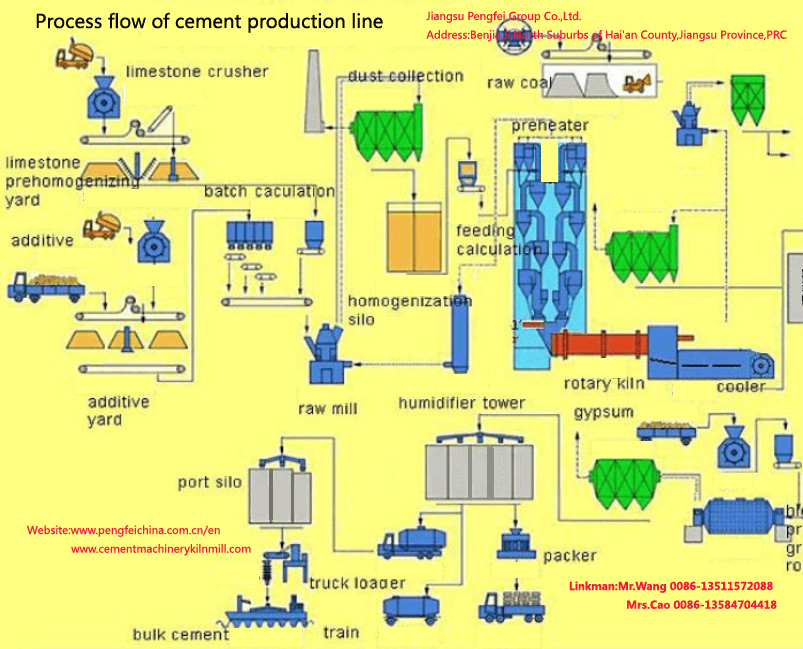

Production Flow of New Type Dry Process Cement Production Line:
1. Crushing and Pre-homogenizing:
Most of the raw materials, like limestone, clay, iron ores, and coal, should be crushed before their pre-homogenization. Limestone is the primary material in this line, and due to its large particle size and high hardness, its good crushing plays an important role in the whole line. Special stacking and reclaiming technology has been used in the pre-homogenizing process so that raw materials can be better primarily homogenized.
2. Raw Meal Preparing:
Since the raw meal grinding work takes up more than 30% labor force in the whole dry process cement production line, it is quite important to choose appropriate grinding equipment and technological process so that high-quality products can be obtained.
3. Raw Meal Homogenizing:
The raw meal homogenization is a key factor for stable clinker calcination.
4. Preheating and Decomposing:
The preheater is used to preheat as well as decompose raw meal. So the length of the rotary kiln is effectively shortened. And the raw meal can fully exchange heat with the hot gases from the kiln. Because of its rapid and high-efficiency heat transfer, the production efficiency and heat consumption of this production line are greatly improved.
5. Clinker Calcining:
After its preheating and pre-decomposing, the raw meal will be calcined in the rotary kiln, where the generated carbonate will be further decomposed. Meanwhile, a series of solid phase reactions will take place.
6. Cement Grinding:
As the last process, the cement grinding will consume a great deal of electricity. And in this process, special size granule cement will be obtained.
7. Cement Packaging:
The cement can be transported in bulk or in bags.Quotation sheet of the 600T/D cement project
| NO | Name of the project | Price(RMB) | Price(USD) |
| ONE | Main production department 主要生產系統 | ||
| 1 | Limestone crushing 石灰石破碎 | ||
| 2 | pre-homogenizing stacking yard and clay and sandstone yard 預均化堆場、粘土& 砂石堆場 | ||
| 3 | Raw material storage 原料筒倉 | ||
| 4 | Raw meal grinding mill 生料磨 | ||
| 5 | Raw meal homogenizing 生料均化 | ||
| 6 | Kiln rear 窯尾 | ||
| 7 | Kiln medium 窯中 | ||
| 8 | Kiln head and clinker transportation 窯頭&熟料輸送 | ||
| 9 | Coal preparation 煤粉制備 | ||
| 10 | Clinker storehouse 熟料筒倉 | ||
| 11 | Cement grinding mill 水泥磨 | ||
| 12 | Cement storehouse 水泥筒倉 | ||
| 13 | Packing and finished-product storehouse 包裝&成品筒倉 | ||
| 14 | Mixture drying 混合料烘干 | ||
| mechanical equipment subtotal 機械設備 | |||
| 15 | Air compressor room 空壓機房 | ||
| 16 | Laboratory equipment(chemistry、physics) 實驗室設備（化學、物理） | ||
| 17 | Workshop electrical, instrumentation and control 車間電氣、儀表、控制 | ||
| 18 | Wire,cable 電線、電纜 | ||
| 19 | water supply and drainage 供水、排水系統 | ||
| 20 | Grinding body研磨體 ～210t | ||
| 21 | non-standard pieces 非標件 | ||
| 22 | heat insulating material 保溫材料 | ||
| 23 | refractory material 耐火材料 | ||
| 24 | Casting Material 澆注料 | ||
| 25 | Commissioning oil 試運行用油 | ||
| nonprocess equipment subtotal 非工藝設備 | |||
| 25 | commodity inspection fee 商檢費 | ||
| 26 | export packing fee 出口包裝費 | ||
| 27 | Freight(NANTONG PORT) 運費（南通港） | ||
| Total 合計 |
Ps： The technical equipment sheet and quotation above differ depending on different raw materials and working conditions of various cement plants. This plan is just for reference only.The quotation is based on standard capacity 600tpd.
=====================================================================================================================
