1,000,000Tons/Year Cement Grinding Plant:
In this 1,000,000t/y cement grinding plant, clinker and slag are ground separately. PFG120-50 rolling machine and Φ3.2m*13m cement mill are used in clinker ginding. Φ3.2m*13m ginding machine and high-efficiency powder separator are used in slag grinding.
This plant features are high quality, high productivity and low consumption.

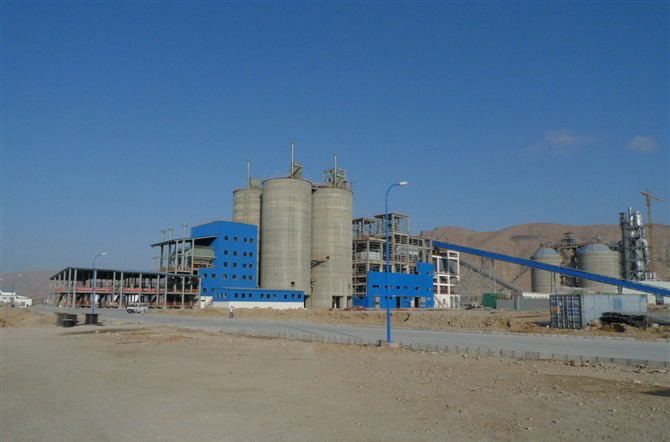

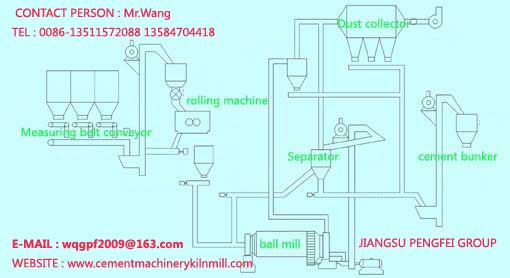

Process Flow Design of 1,000,000Tons/Year Cement Grinding Plant:
1. Designing of Clinker Grinding Production Line
After gypsum, clinker and limestone are measured by the belt weigher, they will be mixed together in accordance with particular proportions, and then sent to the stable weighing warehouse. During this process, magnetic metals are removed by the iron remover from these materials. Then mixed materials will be sent into the rolling machine to be crushed. After crushed, they will be sent to the powder separator, in which coarse powder will be sent back to the griding mill while the fine one will be sent to the elevator for finished products. Finally, they will be sent to finished product storage. Meanwhile, dusty gas from the grinding mill will be purified by the environmental protection equipment before discharged into the atmosphere.
2. Design of Slag Grinding Production Line
Gypsum, dry slag and pulverized coal are measured by the belt weigher before mixed together according to particular proportions. Mixed materials will be sent to the mill for grinding, and during this process, iron remover is employed to remove magnetic metals in these materials. After grinded, fine powder will be sent to high-efficeint powder separator, while coarse powder will be sent back to the grinding mill. Finished cement will be collected by the air tank pulse bag filter, while the fine powder will be sent to the storage for finished products through an elevator. Dusty gases from the mill will be used as the first gas to enter into the powder concentrator, which is followed by fresh air. Finally, dusty gas will be purified by the air tank pulse bag filter before discharged into the atmosphere.
3. Design of Mixing Fine Slag and Powder Clinker
Besides the fineness of powder clinker and fine slag in the grinding production line, accurate measuring and even mixing also need to be paid much attention to. That's why we choose to use the screw measurer as the measuring device and the air slide as mixing device as well as conveying device.
======================================================================================================================
